Screw conveyor

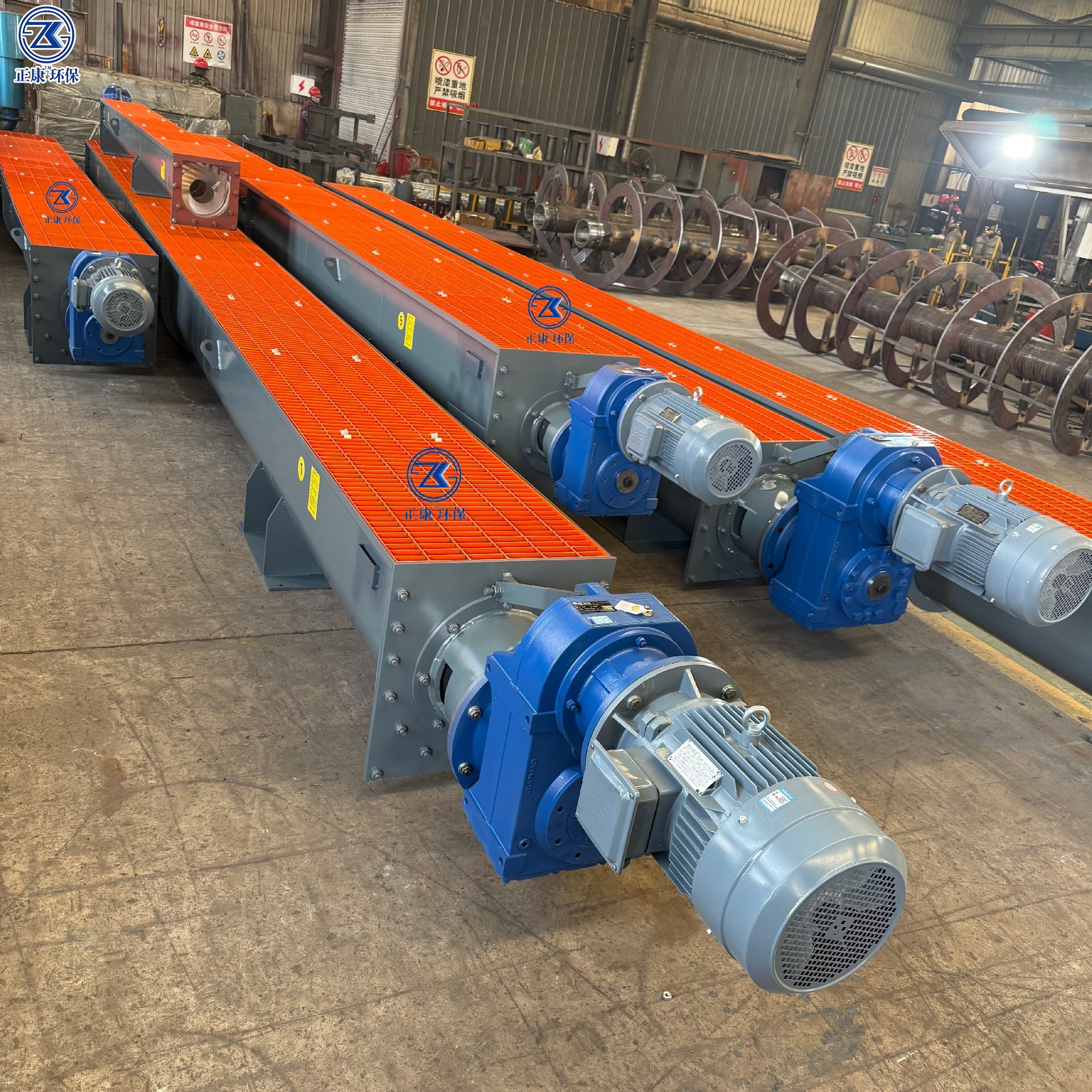

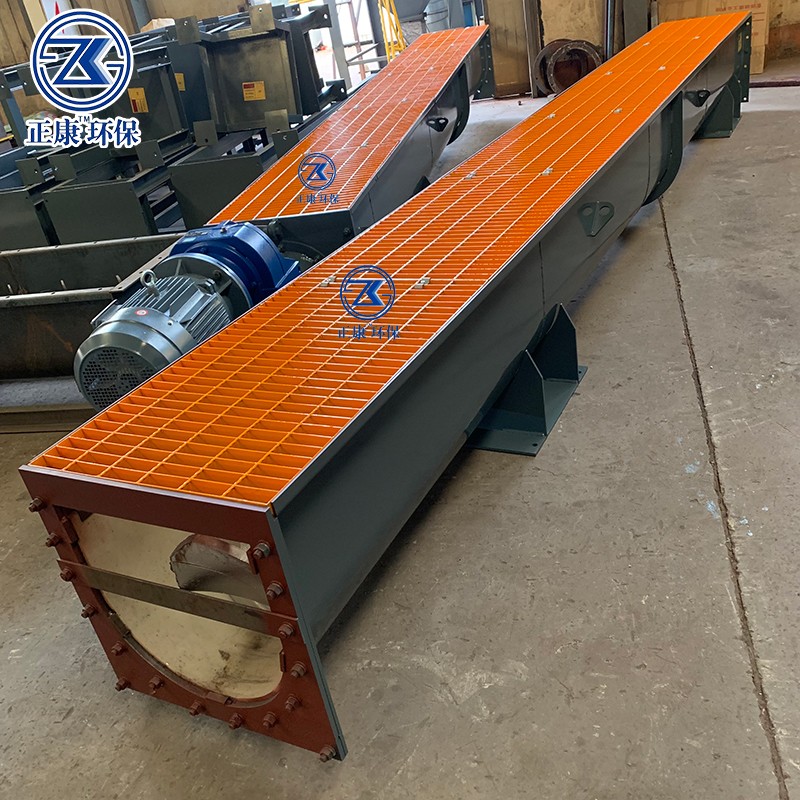

Grille plate shaftless screw conveyor

产品型号：Customized according to demand

产品尺寸：Customized according to demand

产品分类：Screw conveyor

上架时间：2026-02-01 11:18:00

产品描述：The grid plate non-axial screw conveyor is a kind of mechanical equipment used for transporting materials. It is widely applied in various industries such as environmental protection, chemical engineering, and food processing. Working principleThe motor drives the reducer to rotate, and through mech...

在线订购

The grid plate non-axial screw conveyor is a kind of mechanical equipment used for transporting materials. It is widely applied in various industries such as environmental protection, chemical engineering, and food processing. Working principle

The motor drives the reducer to rotate, and through mechanical seal shafts and spiral body connection discs, the non-axis spiral rotates. The material is pushed forward under the friction force between the spiral blades and the shell wall, achieving axial transportation, just like the principle of "the nut moving along the bolt".

Performance features

Strong anti-tangling ability: The non-axis design has excellent performance for transporting band-shaped and easily tangled materials, preventing blockages caused by material entanglement.

Good environmental protection: The use of closed transportation and easily cleanable spiral surfaces can protect the environment and prevent the transported materials from being contaminated or leaking.

Low energy consumption and high torque: Due to the absence of the spiral shaft, the material is less likely to get clogged, the discharge port is not clogged, so it can operate at a lower speed, achieve smooth transmission, and reduce energy consumption. The torque can reach 4000N/m.

Large conveying capacity and long distance: The conveying capacity is 1.5 times that of the traditional conventional shafted spiral conveyor with the same diameter. The single machine conveying length can reach 60 meters, and it can be installed in a multi-stage series connection manner according to user needs to achieve long-distance material transportation. Application scenario

Environmental protection industry: It is commonly used for transporting grits from the grit chambers of sewage treatment plants and sludge from the sludge dewatering rooms. It can also be used to transport municipal solid waste and food waste from garbage disposal stations.

Industrial industry: In the food processing industry, it can handle materials such as fruit peels and vegetable stems; in the building materials industry, it can transport abrasive materials such as sand and slag.

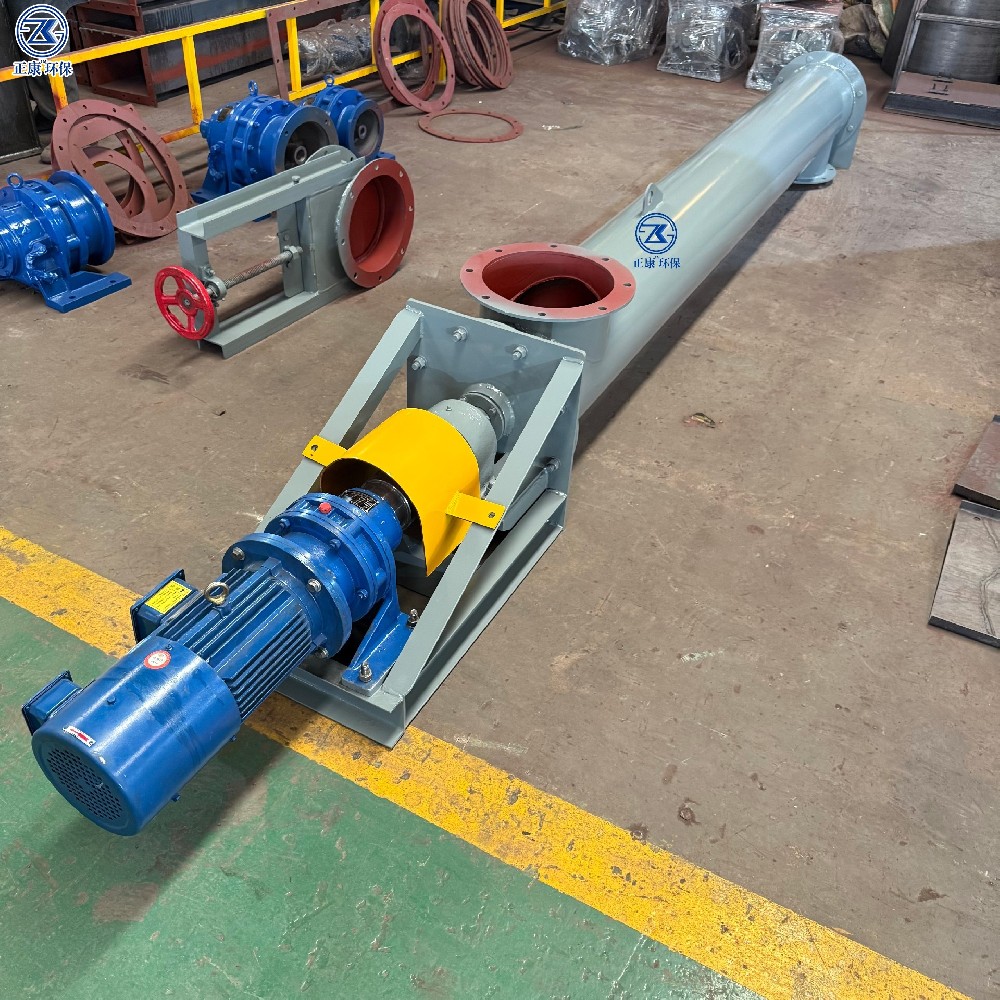

上一篇：Water cooled screw conveyor 下一篇：Pipe spiral conveyor 325 * 3 meters
